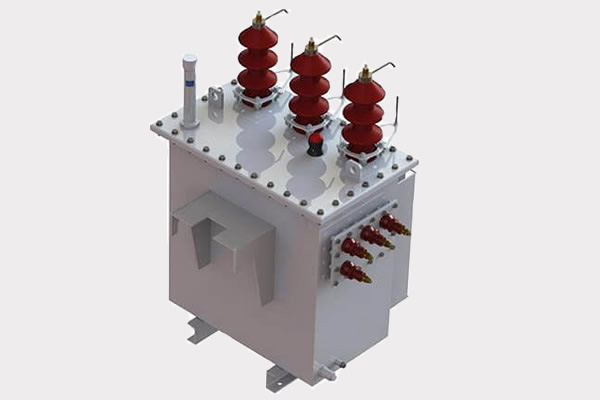

Description of H61 Distribution Transformer:
WEIFAN GROUP's H61 distribution transformer is a oil type transformer which complies with IEC 60076 standard for meeting different country's needs. H61 oil immersed transformer is suitable for aerial distribution networks in rural and urban surrounding areas.

Constitution of H61 Distribution Transformer:
• 3 HTA porcelain roads
• 4 LV porcelain crossings
• shut down
• Reducing valve
• Fill holes
• Standard hooks on the back
• Eyebolt
• The bracket is welded to the bottom of the water tank
• 2 grounded sockets
• Nameplate, warranty sheet.

The color of the tank:
• Cement gray RAL 7033.

Standards and specifications:

• IEC 60076 (publications 1-2-3-4 and 5)
• D60-P60 ONEE-electricity sector.

Power range:
• 50-100-160 KVA.

Explanation:
• Hermetic transformer immersed in oil
• Full ONAN type natural cooling
• Outdoor installation.

Frequency:

• 50 Hz / 60 Hz

Operating Voltage:

• HTA: 3.3kV up to 36kV
• Low voltage: 400-430 V
• Other specific voltages available on request.

Shutdown settings:

• 3-position switch on medium voltage winding: ± 5%
• Other settings are available on request.
