Three phase amorphous coil distribution transformer with standard fully complied with IEC60076, GB1094-1996

Amorphous Alloy Material Introduction

Amorphous alloy material is a low-loss transformer, using a novel energy-saving material. Amorphous alloy strip with iron as the basic elements tighter with silicon and other elements. Under certain conditions melting using ultra rapid cooling technique and spraying it directly into the cooling rollers to cast thin.

Amorphous Alloy Material Characteristics

(1) Material is thin, the thickness only 0.025mm, 1/10 of silicon steel

(2) High resistivity is about three times as the silicon steel belt

(3) Non- directional of crystalline arrangement

(4) High frequency usually a few thousand Hertz

(5) Iron loss is small at 1.35T, the loss is only 0.21W/kg ,65% smaller than ordinary silicon steel

Transformer Special Service Condition

The height above sea level is above 1000m;

Product Description

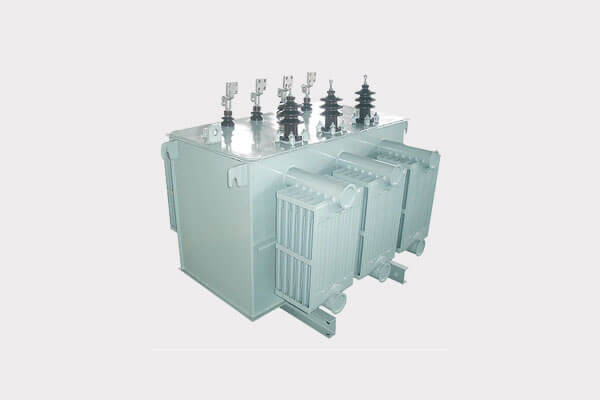

Three phase oil immersed electrical transformer rated voltage during 6-35kV, oil immersed transformer is most used in power plant, power grid transmission and distribution station, industry& commerce electrical substation as the electrical equipment of power transmission,

1. Rated voltage: 6.3kV, 10kV, 11kV, 13.2kV, 13.8kV, 15kV, 20kV, 22kV, 33kV, 35kV

2. Rated power: 5kVA~25000kVA

3, Two windings or three windings

4, On-load or no-load voltage tapping changer

5. Frequency:50Hz /60Hz

6. Vector group: Dyn11, Yyn0, Ynd11, or others

7. Cooling: ONAN / ONAF / OFAF

8. Tap changer:3 levels; 5 levels; 7 levels; 13 levels; 17 levels

9. Rating plate: Yes (WEIFAN GROUP brand or Customer brand)

10. Corrugated refrigeration panels: Yes (Four sides of the transformer shell)

11. Parts:

1) Oil draining valve

2) Oil level indicator

3) Thermometer
