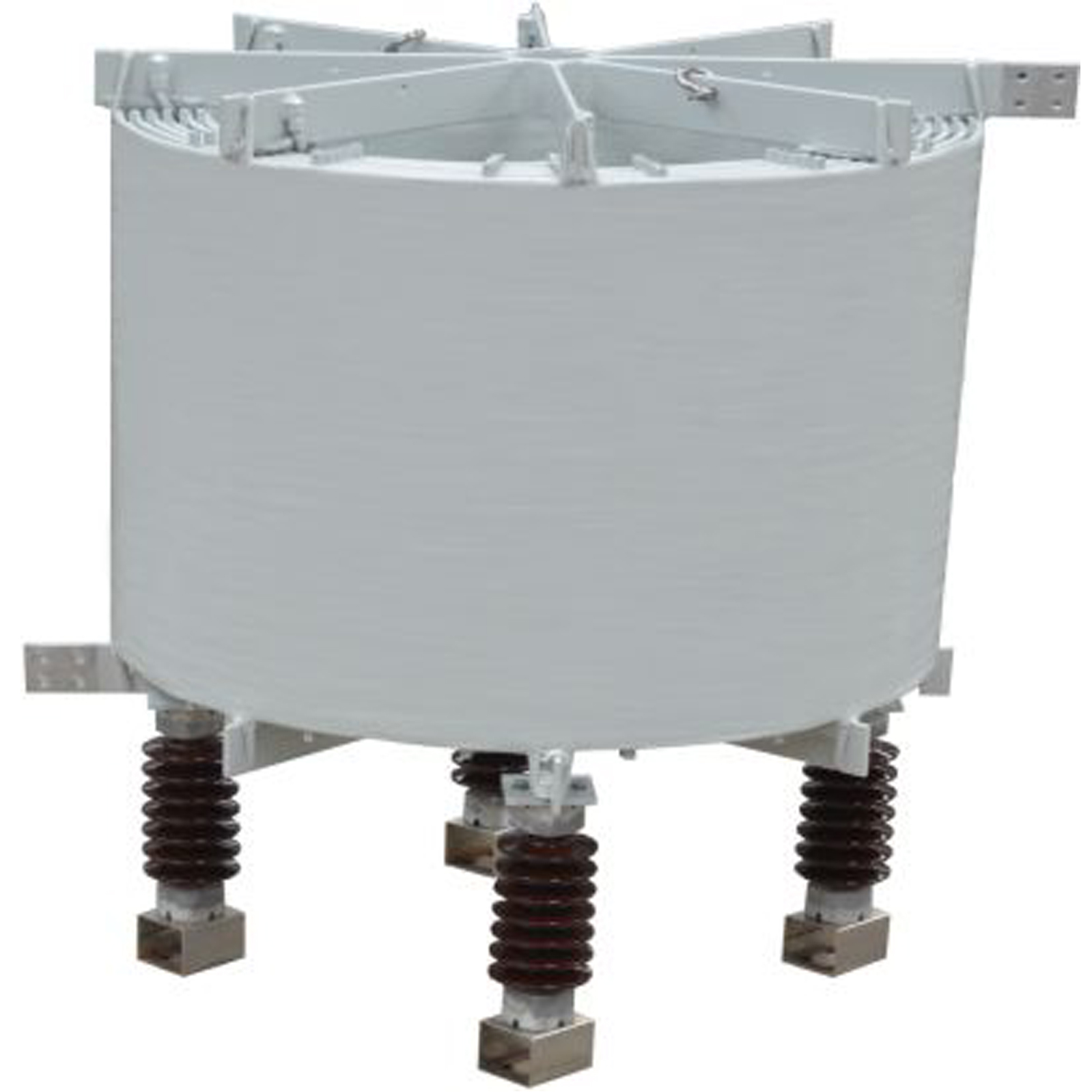

AIR CORE TEST LAB REACTORS

Test Laboratory Reactors are designed for high voltage and high power test laboratories.

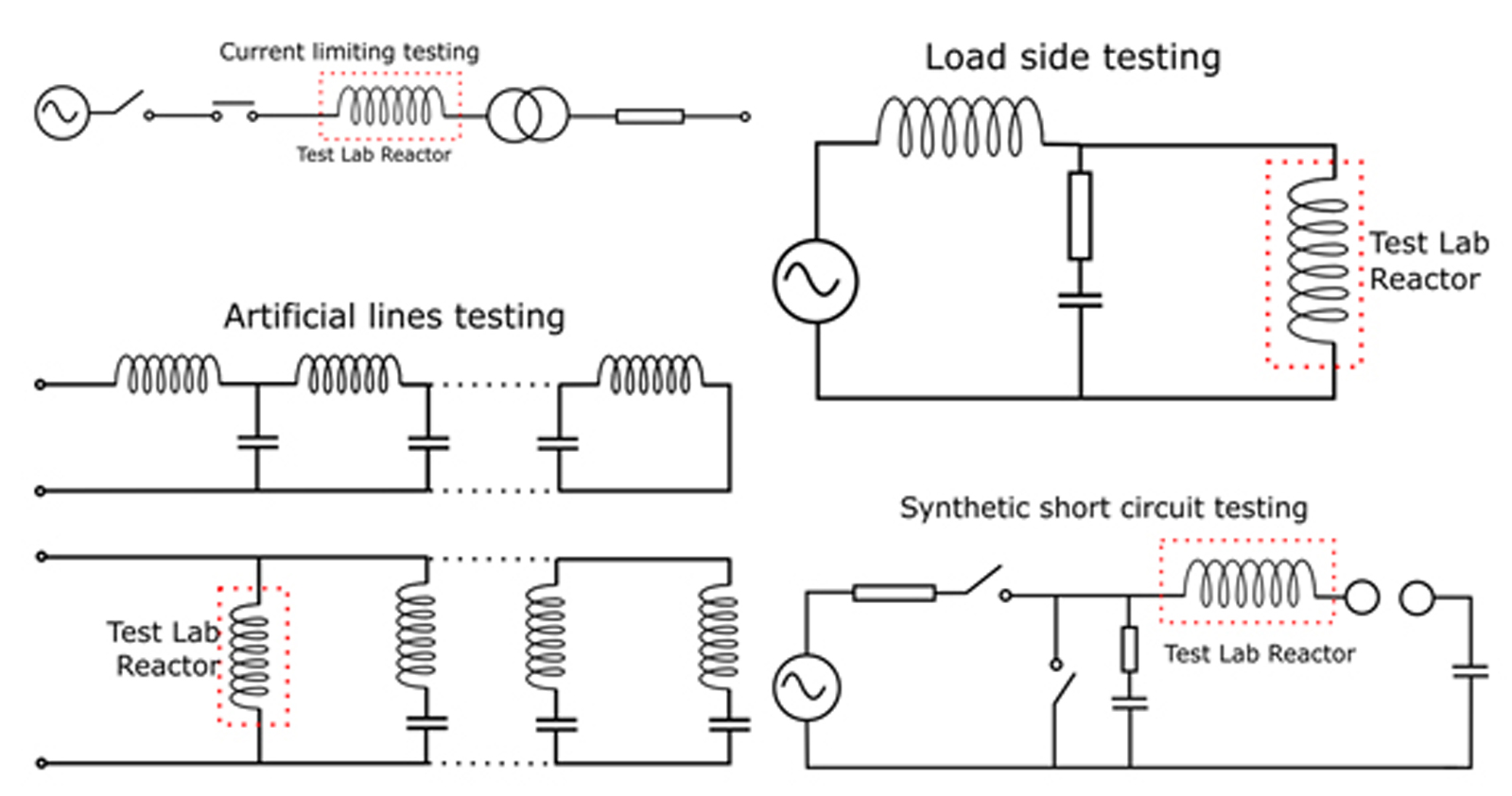

They are designed to withstand the most extreme electrical service conditions during test periods. Design techniques are implemented in accordance with the most demanding service conditions. These reactors are used for various purposes in test laboratories such as current limiting and synthetic testing of circuit breakers, capacitor testing, artificial line simulation etc.

Advantages

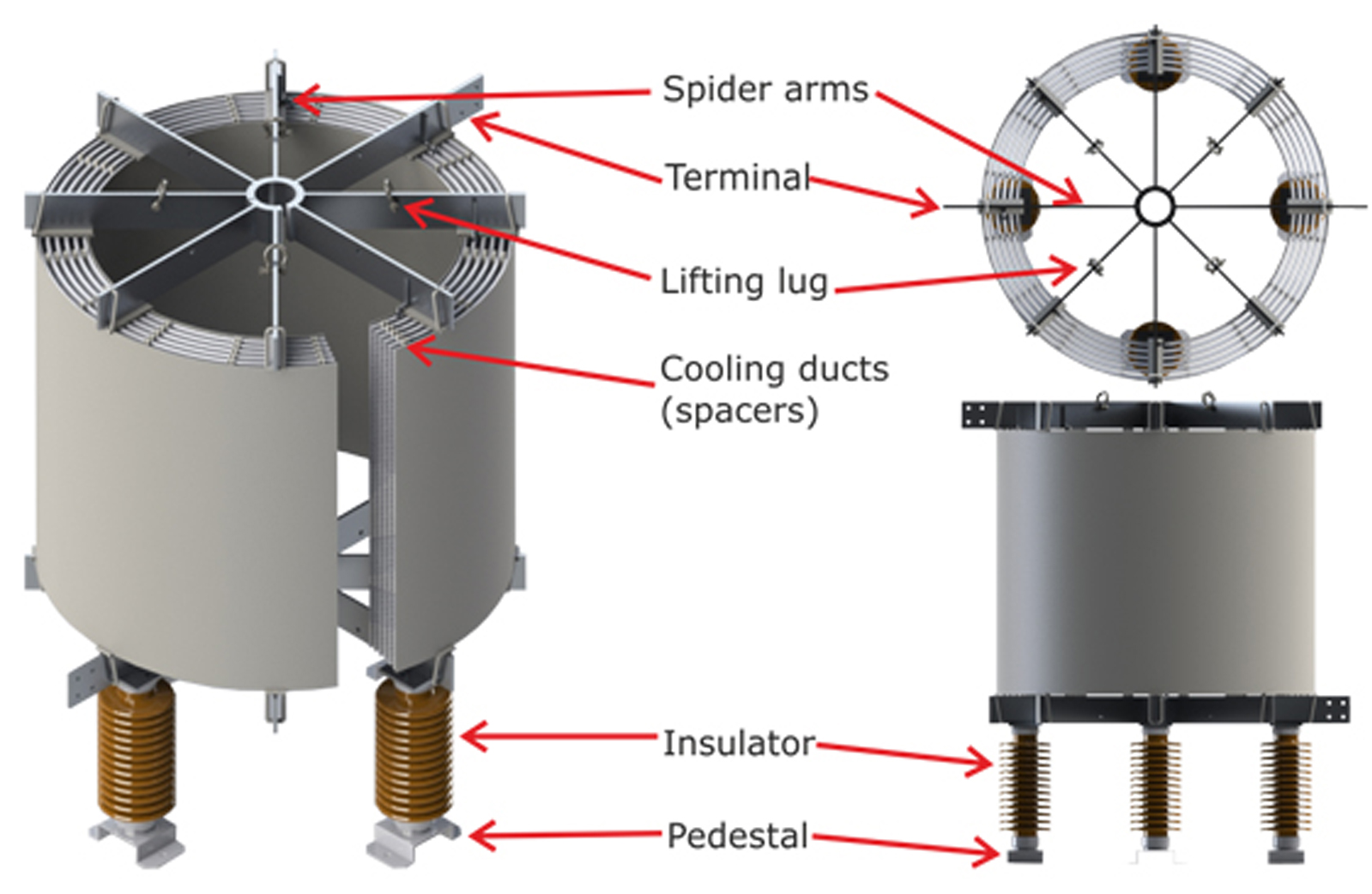

l  Air core, dry type construction

l  Limited temperature rise enables longer lifespan

l  Maintenance-free design

l  High short-circuit withstanding capability

l  Epoxy impregnated, fiberglass encapsulated winding
