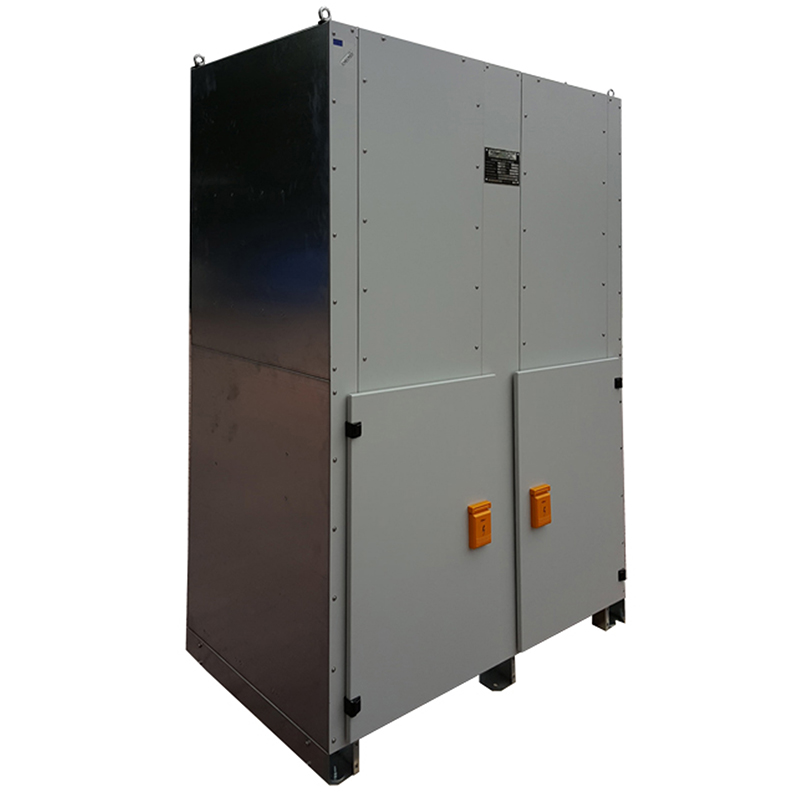

Generator Neutral Grounding Cubicles are designed to minimize fault damage incurred by generators, maintain sufficient fault detection and improve power system reliability. Generator Neutral Grounding and Lead Cubicles are manufactured according to IEEE or IEC standards.

Features

Up to 17.5 kV ,5000 A

Test terminals for current and voltage transformers secondaries

Circuit diagram included in terminal box

100 W anti-condensation heater included against condensation

Zinc-oxide lightning arresters and surge capacitors on demand

Voltage transformer fuses with signal contacts

MV fuse protection

Metal enclosed panels

Type tested panels

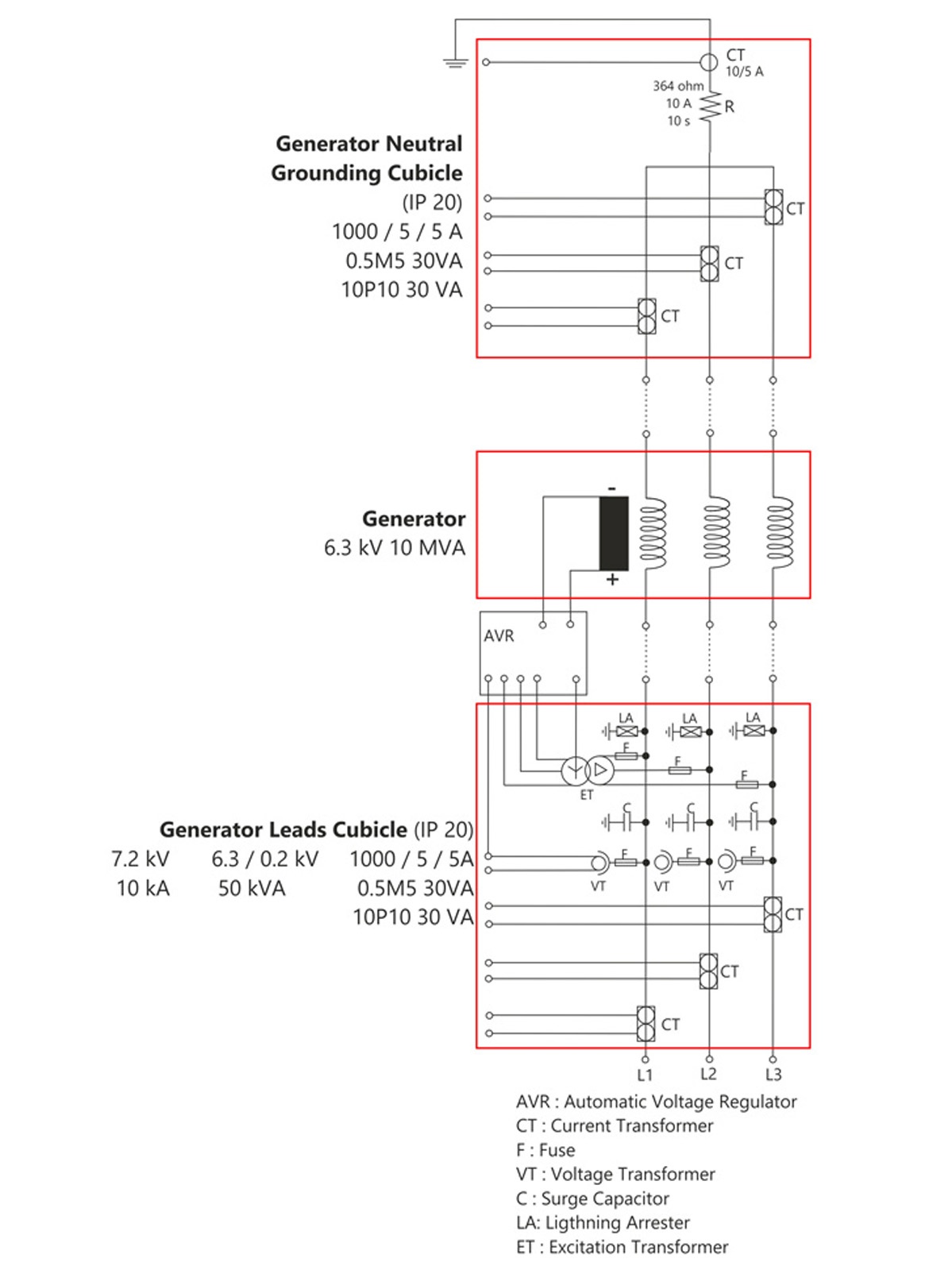

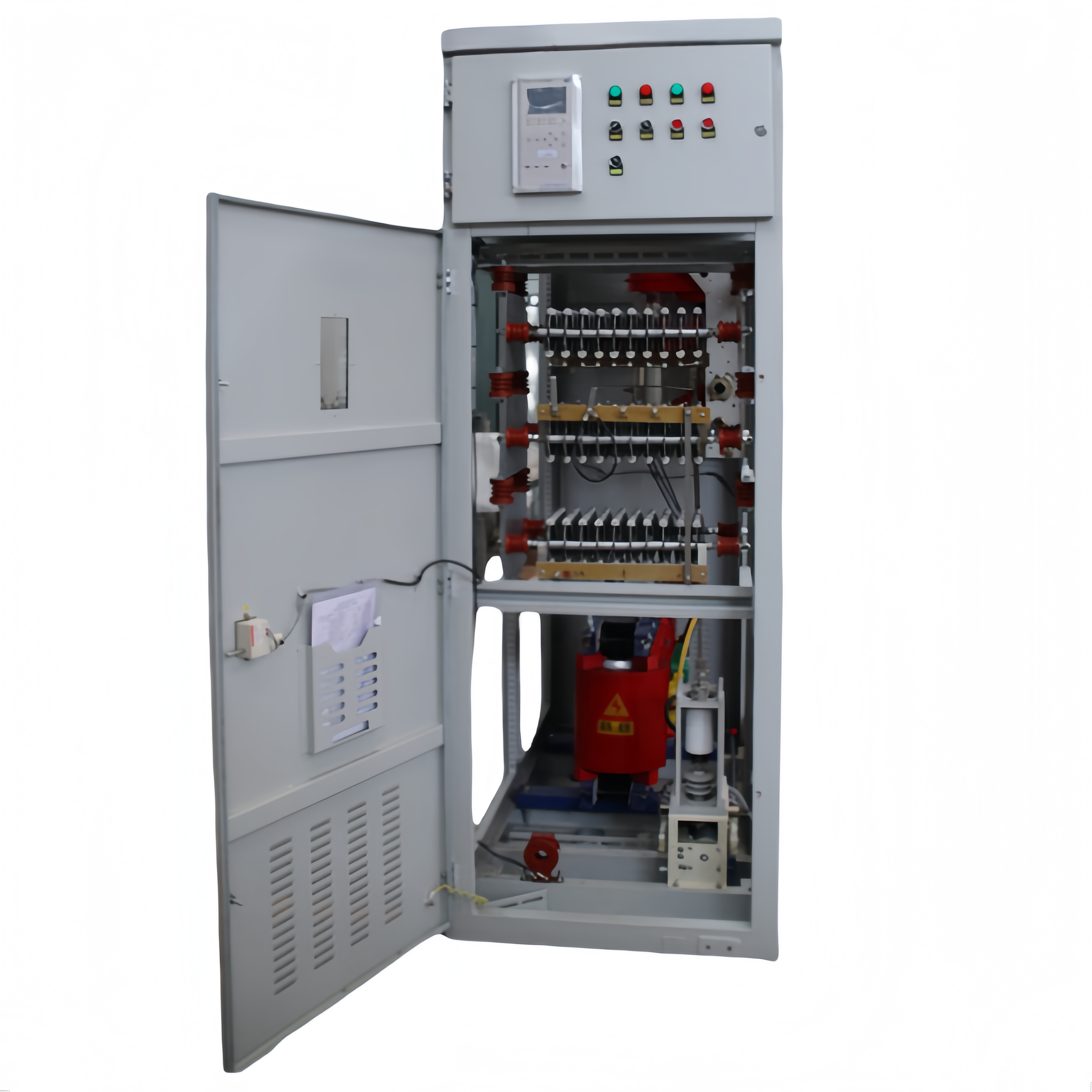

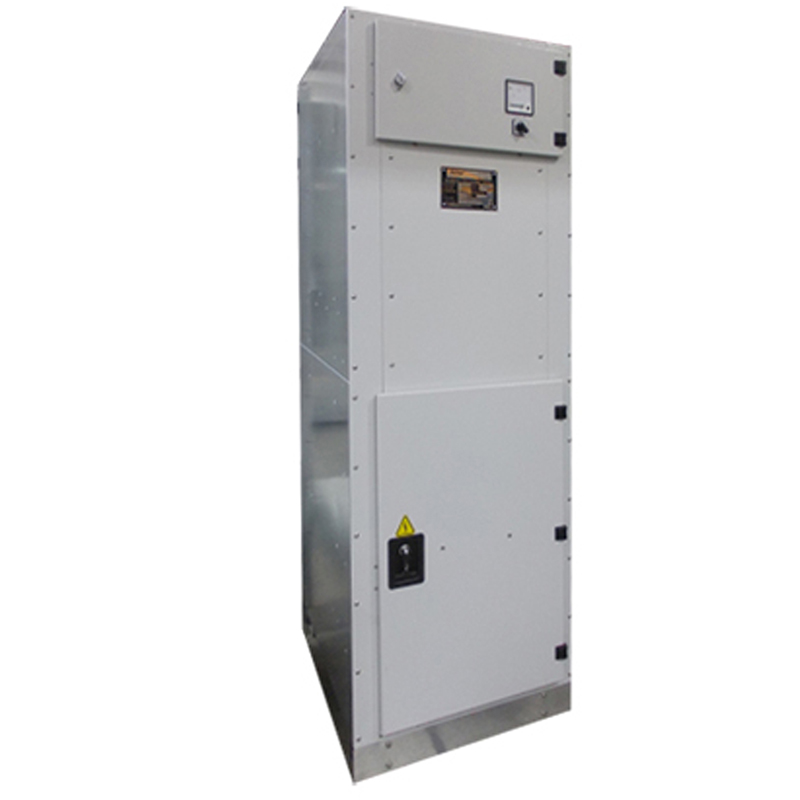

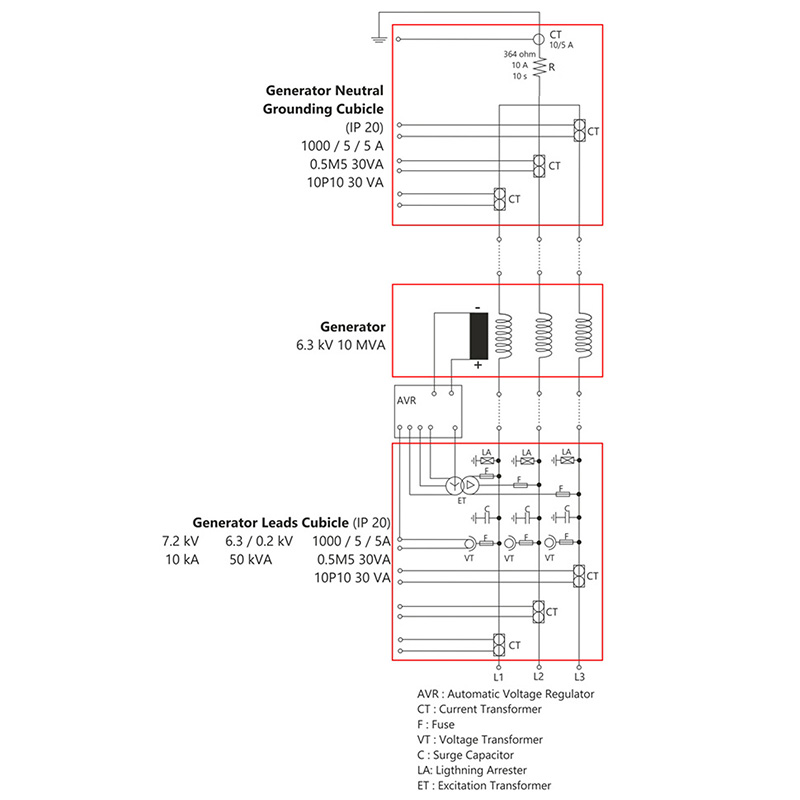

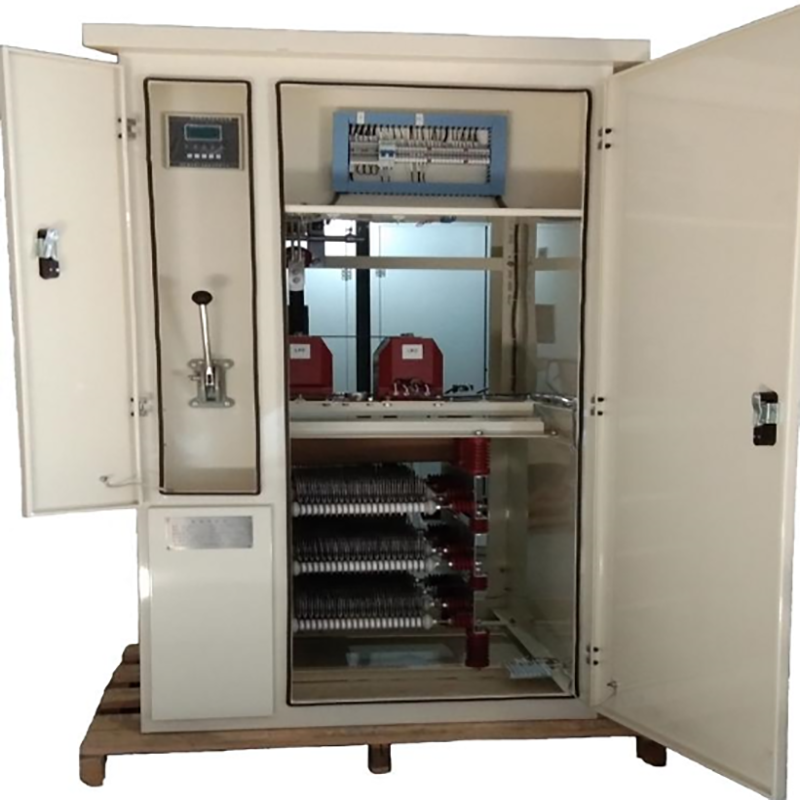

Generator Neutral Grounding Cubicles

3 pcs. current transformers

1 pc. neutral current transformer

1 pc. neutral current ammeter

1 pc. neutral voltage transformer

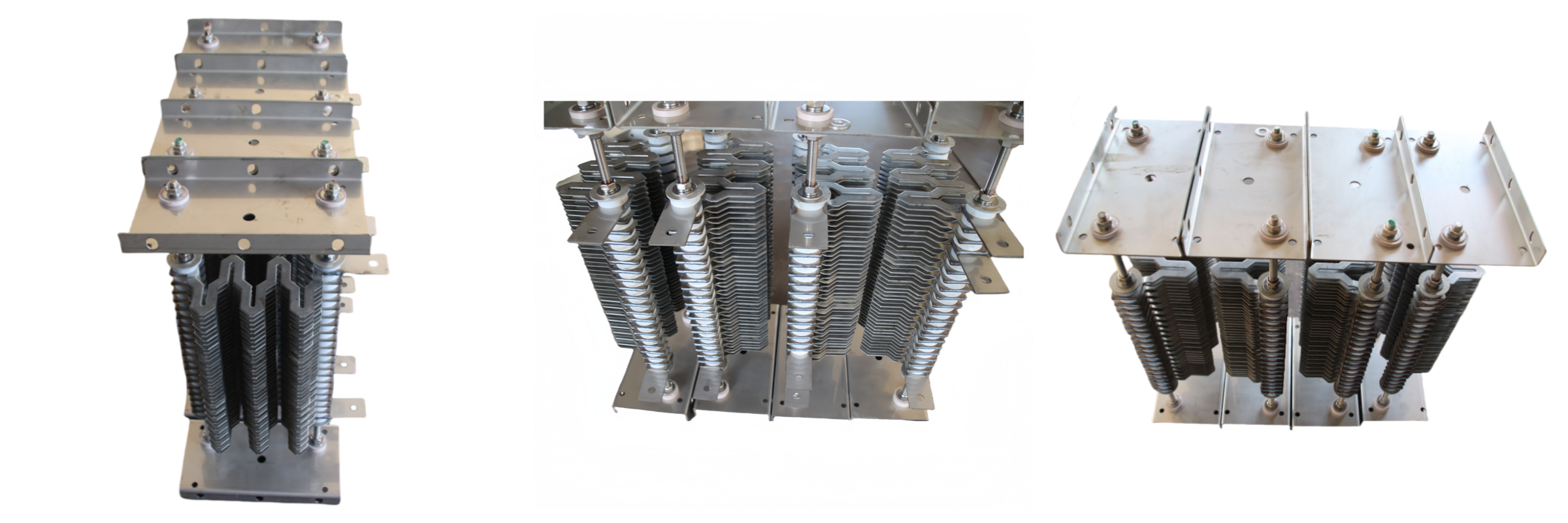

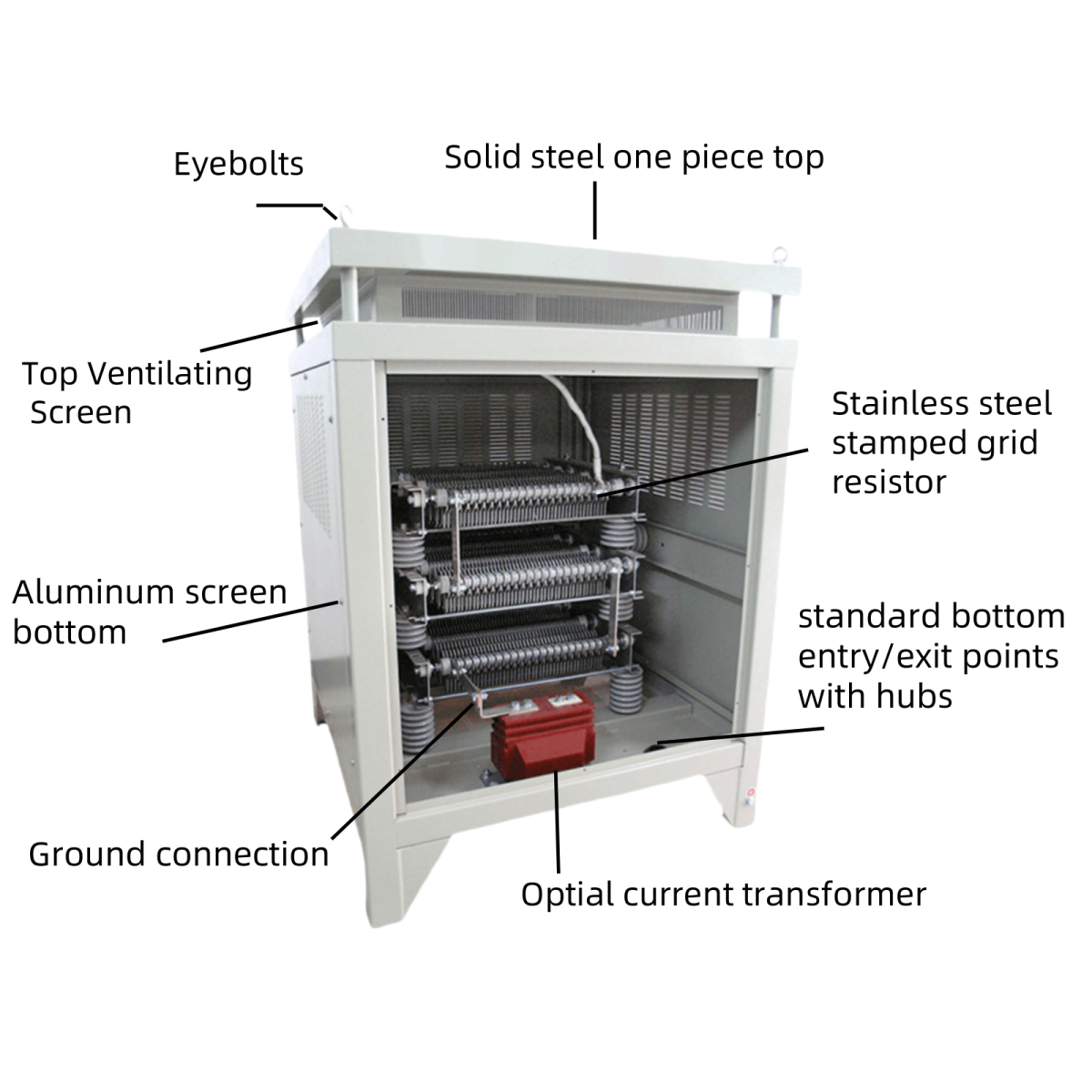

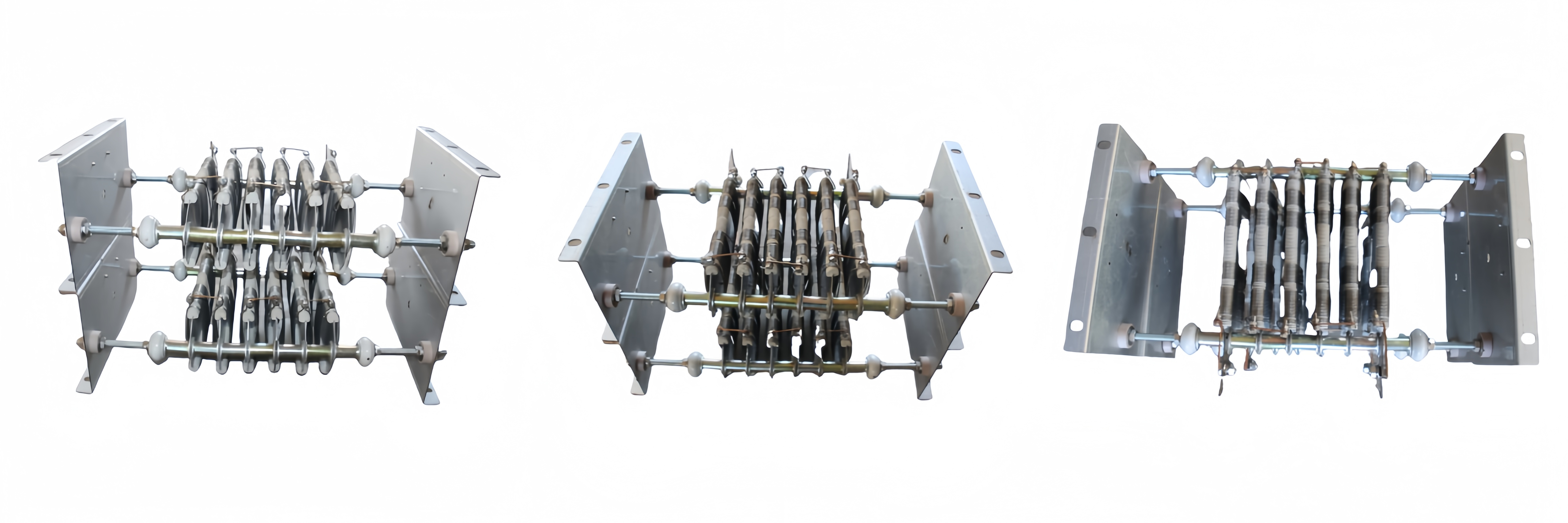

1 pc. neutral grounding resistor

75x92x200 & 100x92x200 cm (WxDxH)

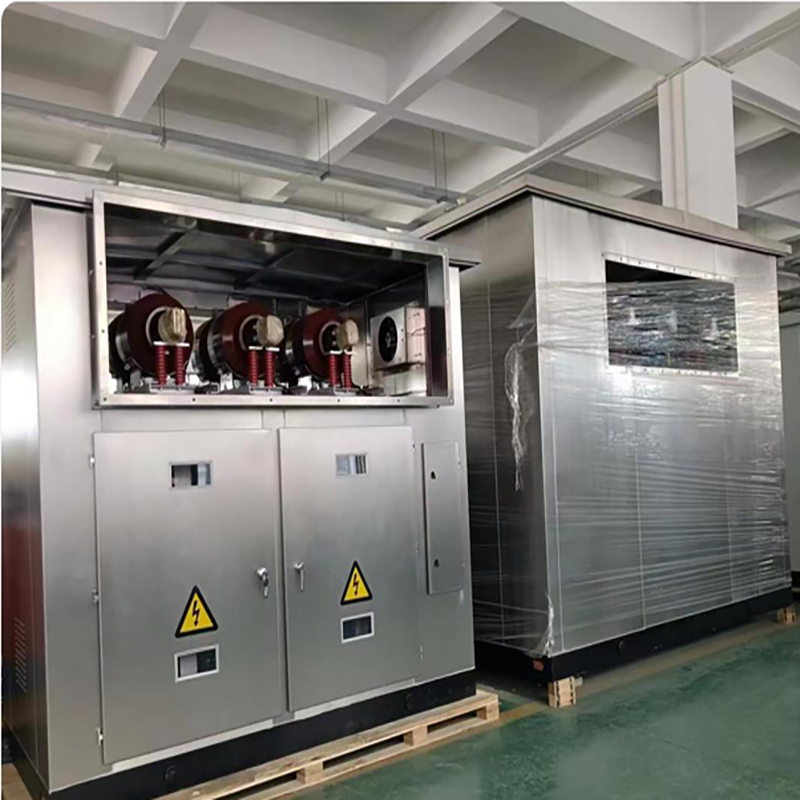

Generator Leads Cubicles

3 pcs. voltage transformers

3 pcs. current transformers

1 pc. excitation transformer (on request)

3 pcs. surge capacitors (on request)

3 pcs. lightning arrester (on request)

1 pc. voltmeter

75x92x200 cm (WxDxH)
