GeneratorNeutral Grounding Cubicles are designed to minimize fault damage incurred by generators, maintain sufficient fault detection and improve power system reliability. Generator Neutral Grounding and Lead Cubicles are manufactured according to IEEE or IEC standards.

Features

l  Up to 17.5 kV ,5000 A

l  Test terminals for current and voltage transformers secondaries

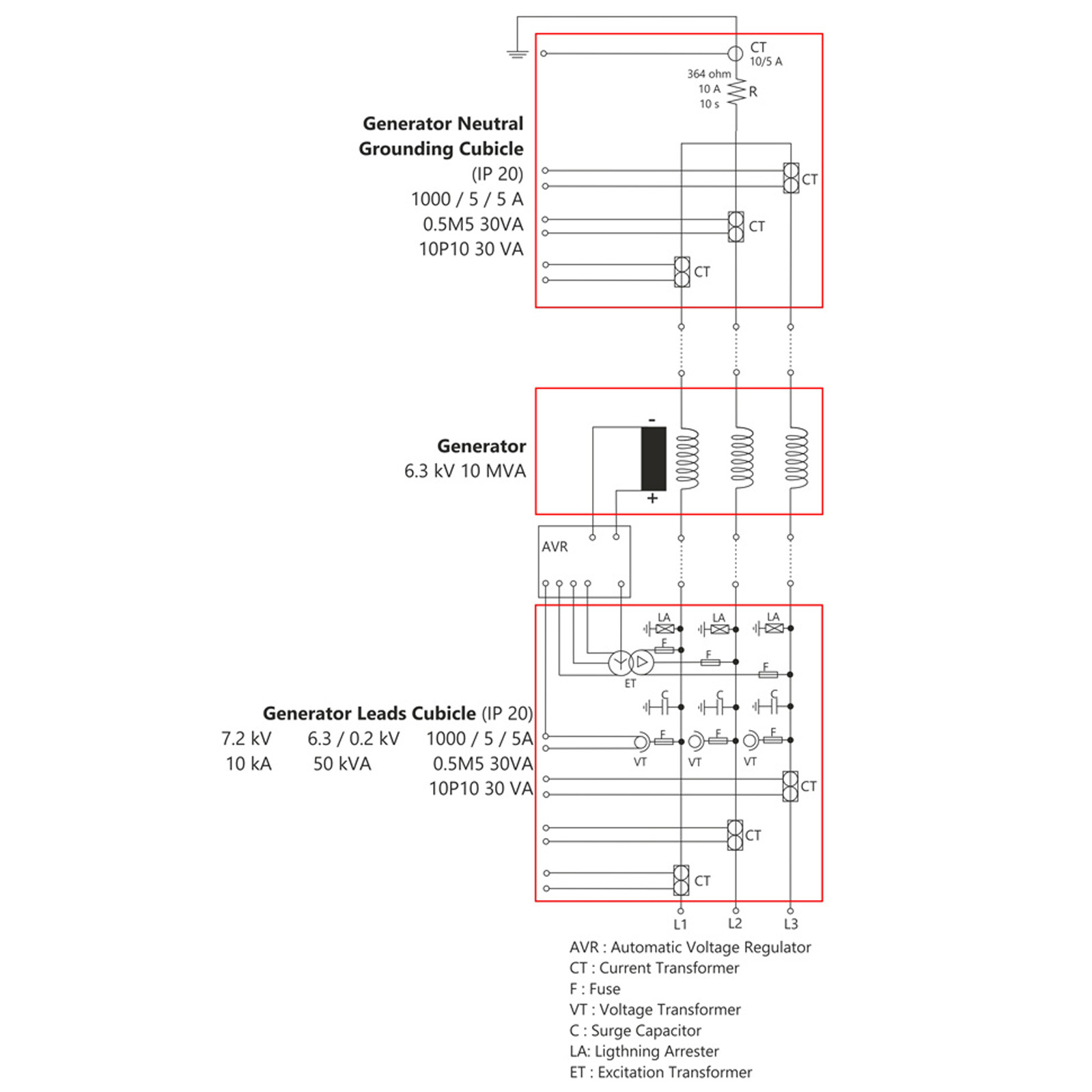

l  Circuit diagram included in terminal box

l  100 W anti-condensation heater included against condensation

l  Zinc-oxide lightning arresters and surge capacitors on demand

l  Voltage transformer fuses with signal contacts

l  MV fuse protection

l  Metal enclosed panels

l  Type tested panels

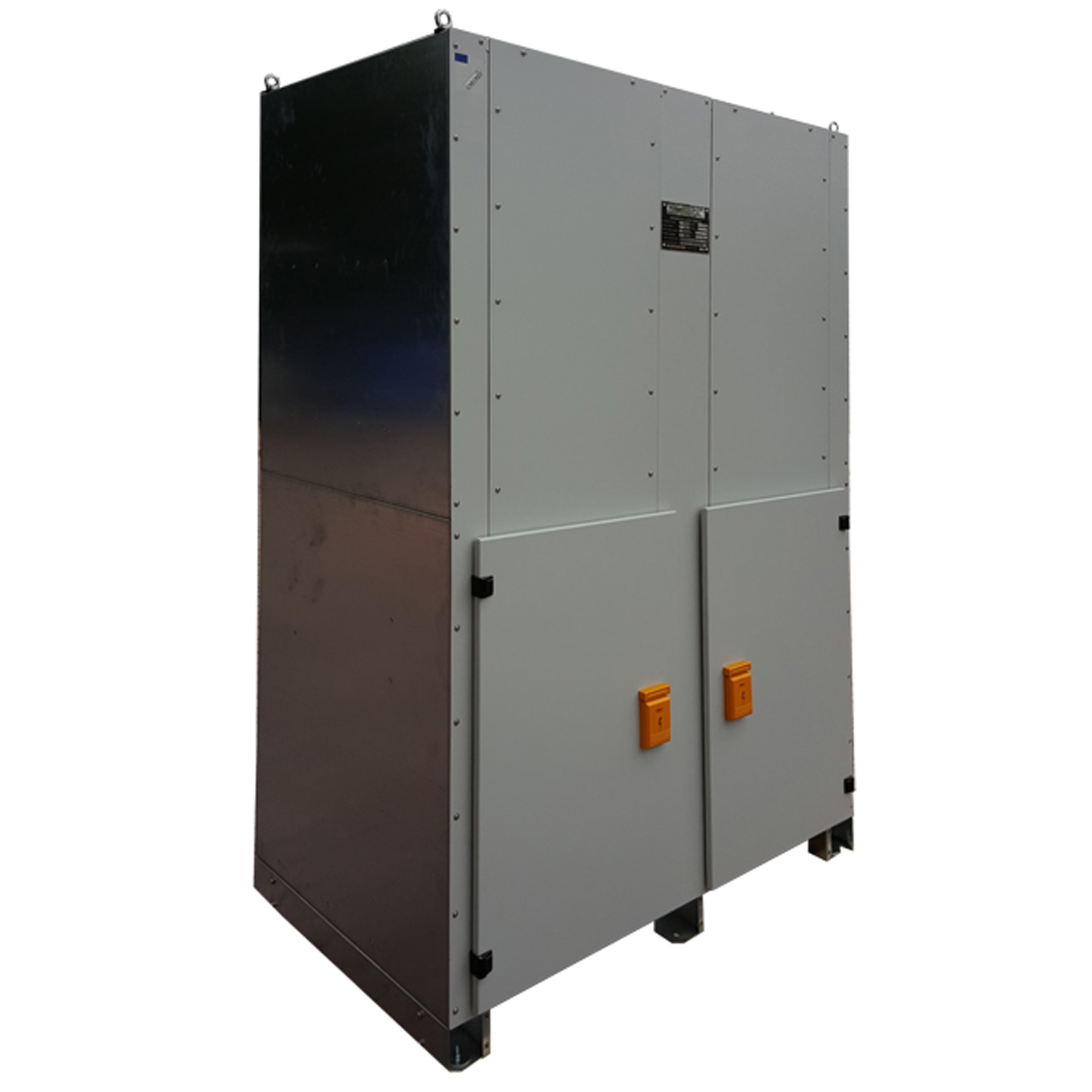

Generator Neutral Grounding Cubicles

l  3 pcs. current transformers

l  1 pc. neutral current transformer

l  1 pc. neutral current ammeter

l  1 pc. neutral voltage transformer

l  1 pc. neutral grounding resistor

l  75x92x200 & 100x92x200 cm (WxDxH)

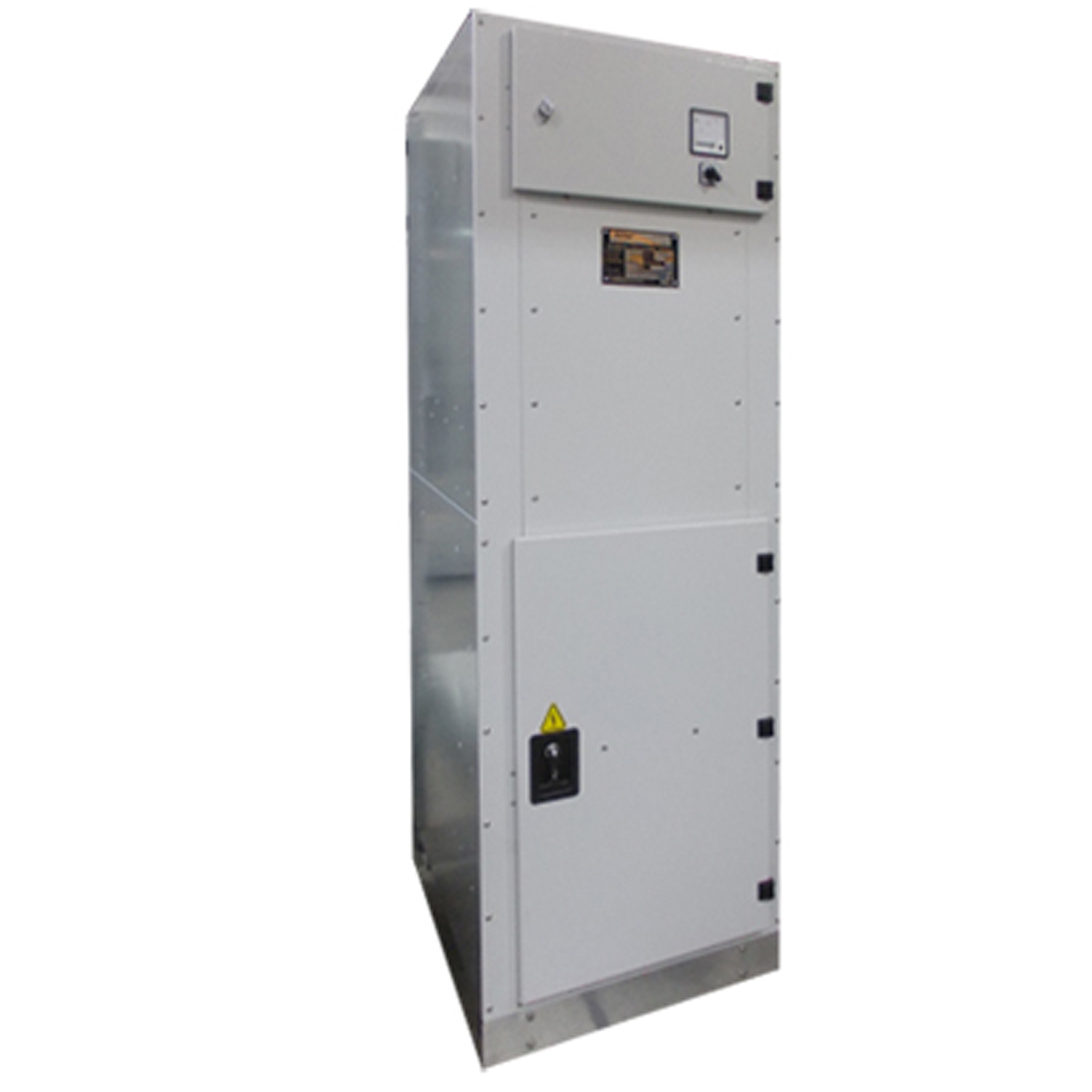

Generator Leads Cubicles

l  3 pcs. voltage transformers

l  3 pcs. current transformers

l  1 pc. excitation transformer (on request)

l  3 pcs. surge capacitors (on request)

l  3 pcs. lightning arrester (on request)

l  1 pc. voltmeter

l  75x92x200 cm (WxDxH)
